Standard design withstands 90 MPH wind zones

TIG welded aluminum pole channels

6000 series structural aluminum mounting rails

Stainless Steel module mounting hardware

Zinc plated rack assembly hardware

High strength stainless steel band clamps

Several sizes available from 1 through 4 modules

Installs around standard 2-4.5” OD pipe (Installer Supplied)

30° to 60° tilt angle settings (full range)

Mount up to 840W on a single pole

Module Specific Design reduces number of parts and labor

No measuring required

Factory set module hole placement locations create uniform spacing

Easy access bottom flange module attachment

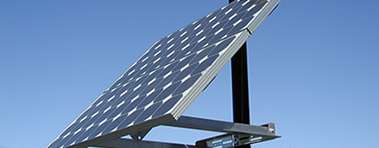

The POWER-FAB SPM is designed to install quickly and provide a secure mounting structure for PV modules on a single pole. The module-specific design reduces the number of components and provides for an easy assembly. The SPM utilizes high strength aluminum components and corrosion resistant hardware for long term reliability. Seasonal adjustability for maximizing production is provided by several tilt-angle settings and is a one person operation.
