MNKID-B
Tel: (51-1) 717-8340
info@lgtsolar.com
MNBRAT3
<
>
1 - 1
x

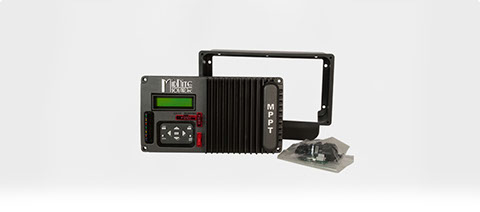

The KID is the most versatile medium sized charge controller on the market. Ideal for small renewable energy systems. The KID allows for true input paralleling. As your power needs grow, add more modules to the array and a second KID. This will give twice the power from a single array.
Available in Black or White in the Standard version, MNKID-B (black) or MNKID-W (White)
Beneficios
Documentos
Now includes AGS (Auto Generator Start)
MPPT Tracking
Type 1 environmental rating
True paralleling - Inputs and Outputs for two KIDs
Up to 150V input
MidNite’s exclusive HyperVOC extends the input voltage beyond 150 VOC for cold climates
12V, 24V, 36V, 48V battery output
Lighting Controller: dusk-dawn, hourly, day, night settings
Up to 30 amps battery output with low input voltage based off of PV configuration
No fan
Reverse polarity protected
Battery Temp Sensor (MNBTS) standard with marine version only.
Front panel exchangeable fuses for battery, input and load/clipper.
3 LED bar graph for battery status at a glance
Keypad for access to extensive menu items and set points
Includes wall mount adapter (Boat mount bracket included on marine versions)
Sealed for harsh environments
Built in Arlington, WA USA
Warranty - 2 yrs.
