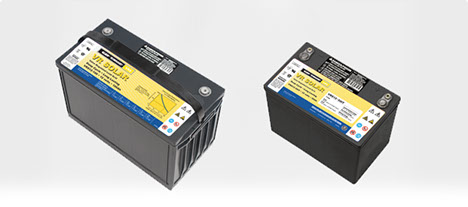

VR SOLAR 1062

Tel: (51-1) 717-8340

info@lgtsolar.com

Beneficios

Especificaciones

Documentos

Robust plate for extended cycle life.

Computer generated grid design optimized for high power density.

Low calcium grid alloy for reduced gas emissions and ease of recycling.

Flame-arresting one-way pressure-relief vent for safety and long life.

UL-recognized component.

Multicell design for economy of installation and maintenance.

Thermally welded case-to-cover bond to eliminate leakage

 Removable carrying handles (HIT Versions)

Can be used in any orientation. Upright, side, or end mounting recommended.

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance.

Low calcium grid alloy for reduced gas emissions and ease of rec Not restricted for air transport - complies with IATA/ICAO Special Provision A67.

Not restricted for surface transport – classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189.

Low profile terminals with threaded copper alloy inserts for reduced height, reduced maintenance, and increased safety.

Non-Hazardous, not restricted for any transportation mode (air, water or land)

6

Cells Per Unit

Nominal Voltage Per Unit

12

Electrolyte

Absorbed H2SO4, SG = 1.300

Discharge: -40°F (-40°C) to +160°F (71°C)

Charge: -10°F (-23°C) to +140°F (60°C)

Operating Temperature Range

Normal Operating

Temperature Range

+68°F (20°C) to +80°F (27°C)

Recommended Maximum Charging

Current Limit

30 amperes per 100 Ah @ C20

Float Charging Voltage

13.5 to 13.8 VDC/unit Average at 77°F (25°C)

Equalization and

Cycle Service

Charging Voltage



14.4 to 14.8 VDC/unit Average at 77°F (25°C)

Maximum AC Ripple

0.5% RMS or 1.5% P-P of float charge voltage recommended for best results

Self Discharge

Battery can be stored up to 6 months at 77°F (25°C) before a freshening charge is required. Batteries stored at temperatures greater than 77°F (25°C) will require recharge sooner than batteries stored at lower temperatures. See C&D bulletin 41-7272, Self-Discharge and Inventory Control for details.



Accessories

Inter-unit connectors, racks and cabinet systems are available

Terminal

Inserted Terminal (Copper Alloy)

10-32 UNF bolt (VRS12-33, VRS12-50)

¼-20 UNC bolt (VRS12-75, VRS12-88, VRS12 -100)

Terminal Hardware

Initial Torque

30 in.-lbs (3.4 N-m) (VRS12-33, VRS12-50)

110 in.-lbs (12.4 N-m) (VRS12-75, VRS12-88, VRS12-100)

The VR Solar®, with its proprietary grid alloy and paste formulation, provides superior performance in both high cycling and float applications. This VRLA/AGM battery is designed to be easy to install and maintain, and offers long life and exceptional performance.
